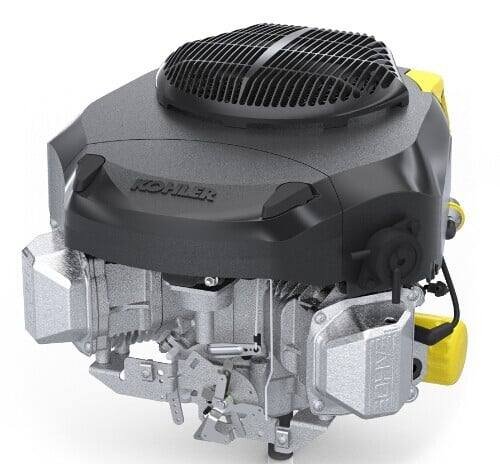

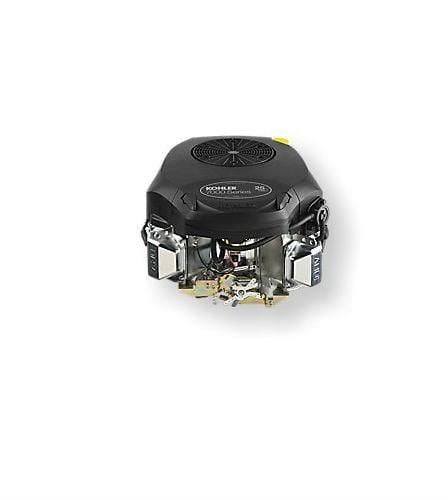

Kohler Engines KT735-3011 24 HP 725cc Vertical Shaft V-Twin Gas Engine

Kohler Engines KT735-3011 24 HP 725cc Vertical Shaft V-Twin Gas Engine

$1,382.55 USD
$2,127.00 USD $1,382.55 USD
Sale Sold out
Shipping calculated at checkout.

Kohler KT735-3011 Engine

Features:

  • 24 HP 725cc Vertical Shaft
  • 1.00" x 3.16 Crankshaft Assy Part 32 014 327-S
  • Professional grade design with durable components for powerful cuts
  • Durable long-lasting design with cast-iron cylinder bores and pressure lubrication
  • User-friendly with easily accessible service points
  • High-torque inertia drive starter with extra-large output
  • Easy-access air filter for quick inspection
  • High-torque inertia drive starter with extra-large output
  • Consistent-Cut technology provides more consistent power
  • Optional PRO Performance air, oil, and fuel filters
  • Dual-seal air filter to keep debris out

Specs:

Model
KT735
J1940 Power hp(kW) 1 24 (17.9)
Displacement cu in (cc) 44.2 (725)
Bore in (mm) 3.3 (83)
Stroke in (mm) 2.6 (67)
Peak Torque lbs. ft (Nm) 40.5 (54.9)
Compression Ratio 9.1:1
Dry Weight lbs (kg) 85 (38.6)
Oil Capacity U.S. quarts (L) 2 (1.9)
Lubrication Pressure lubrication w/full flow filter
Dimensions L x W x H in 18.6 x 17.5 x 13.9
Backpressure Limit 2 50
J1995 Power hp (kW) 3 22.2 (16.6)
J1995 Rated Speed (RPM)  3600
