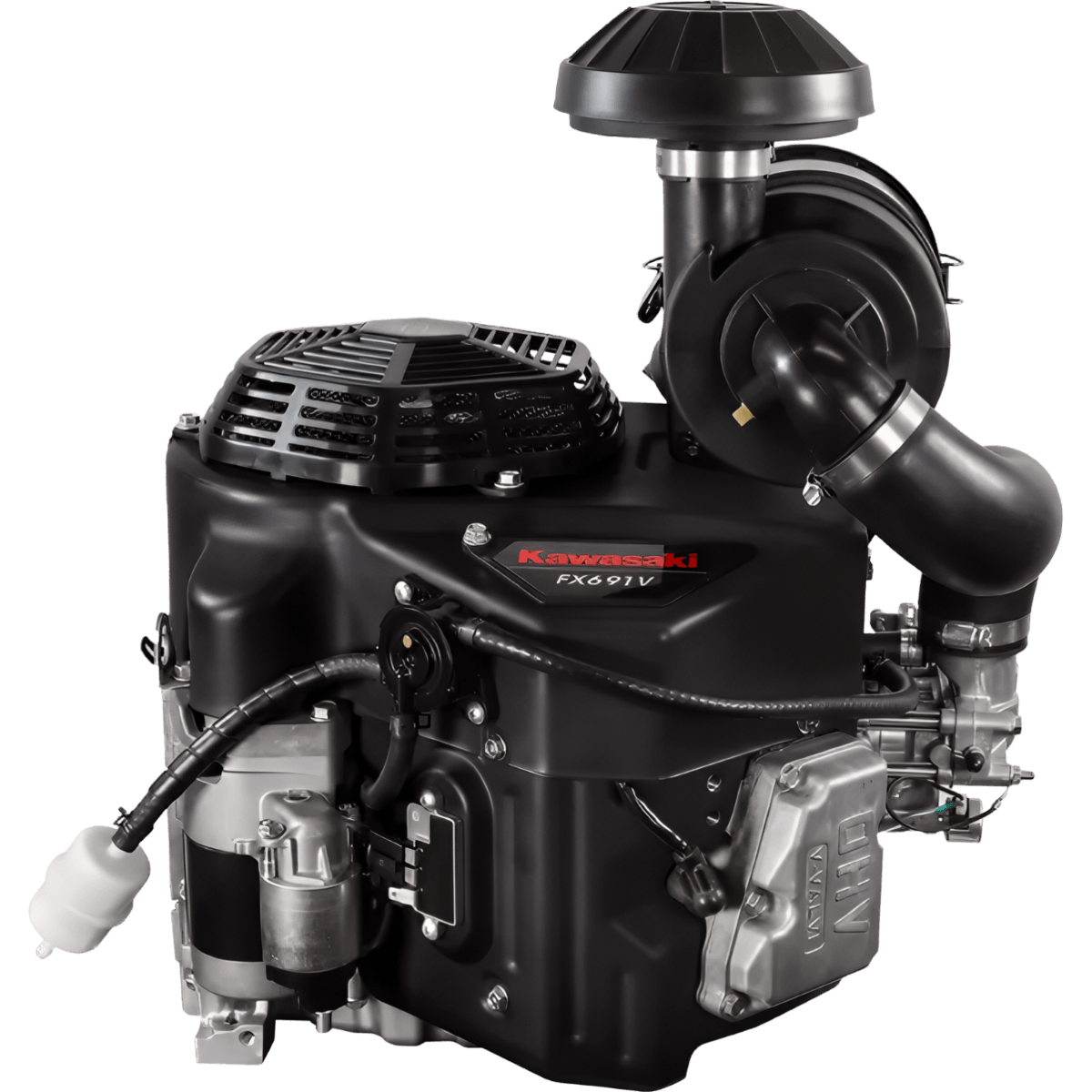

Kawasaki FX691V-(F)S14-S 22 HP Vertical Engine 730 Series

Kawasaki Engine FX691V-(F)S14-S

Each image of the engine represents the series itself and not the individual engine.

Features:

• V-Twin
• Vertical PTO shaft
• Cast iron cylinder liner
• Overhead V-valve
• Internally vented carburetor with fuel shut-off solenoid
• Full pressure lubrication system
• Spin-on oil filter (optional)
• H.D Canister air filter
• Ball bearing crankshaft top support
• 13a or 20a charge coils
• Bendix type starter
• 78 mm cylinder bore
• 76 mm piston stroke
• 8.2:1 compression ratio
• 2,000 rpm of torque
• Automatic compression release system
• Mechanical governor
• Pulse type fuel pump
• Electronic spark ignition system
• Dual cable controls
• Heavy-Duty
