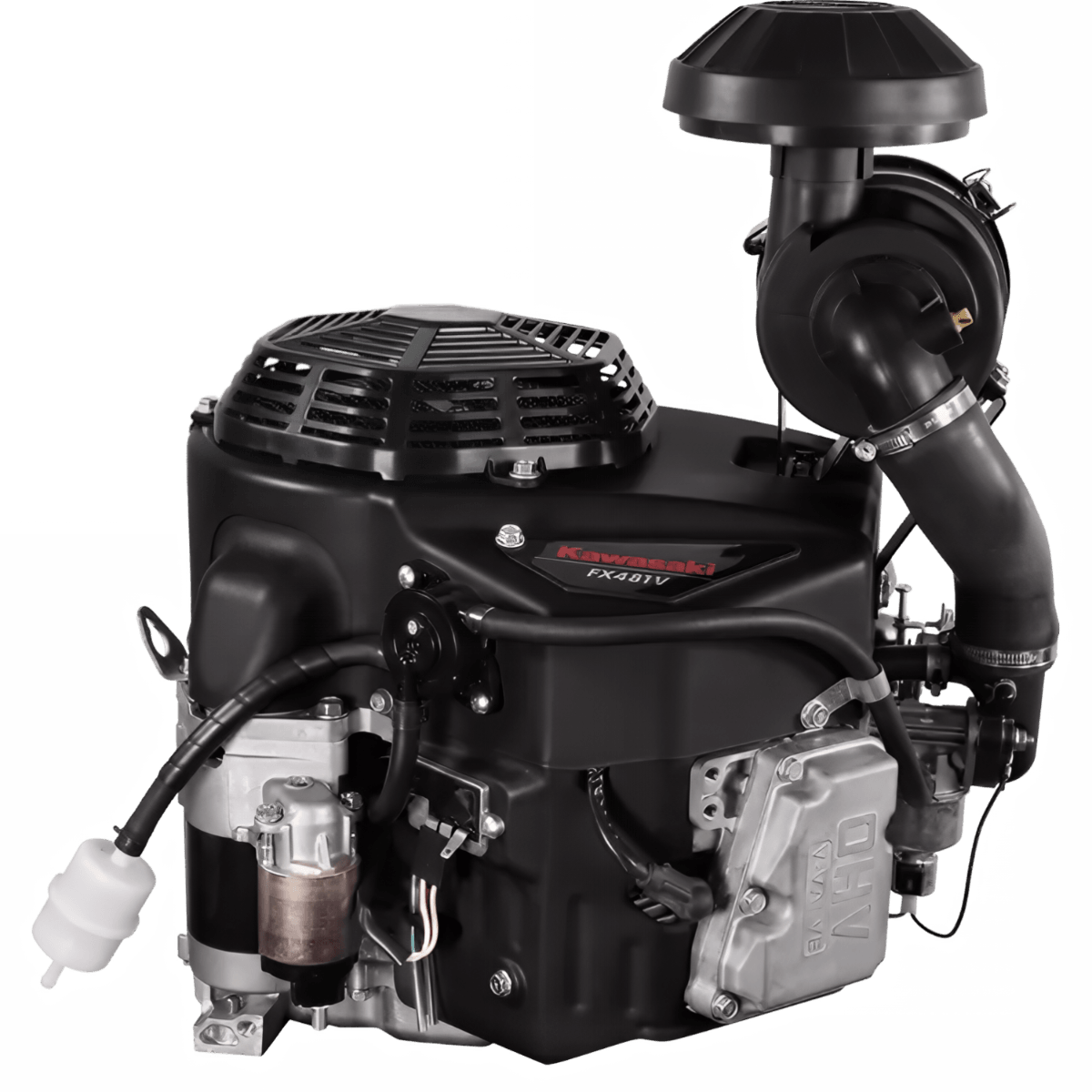

Kawasaki FX481V-(F)S01-S 15.5 HP Vertical Engine 600 Series

Kawasaki Engine FX481V-(F)S01-S

Each image of the engine represents the series itself and not the individual engine.

The engine is equipped with the electronic spark ignition system and internally vented carburetor with fuel shut-off solenoid. The motor uses a high-performance lubrication system and single-stage air filter.

Features:

• V-Twin
• Vertical PTO shaft
• Spherical combustion chamber
• Cast iron cylinder liner
• Overhead V-valve
• Single barrel carburetor with fuel shut-off solenoid
• Full pressure lubrication system
• Spin-on oil filter (optional)
• Single-stage air filter
• Ball bearing crankshaft top support
• Recoil type starter
• 13a or 20a charge coils
• 73 mm cylinder bore
• 72 mm piston stroke
• 8.1:1 compression ratio
• 2,200 rpm of torque
• Low-Tone muffler with guard
• Automatic compression release system
• Mechanical governor
• Pulse type fuel pump
• Electronic spark ignition system
• Dual cable controls
• Heavy-Duty
