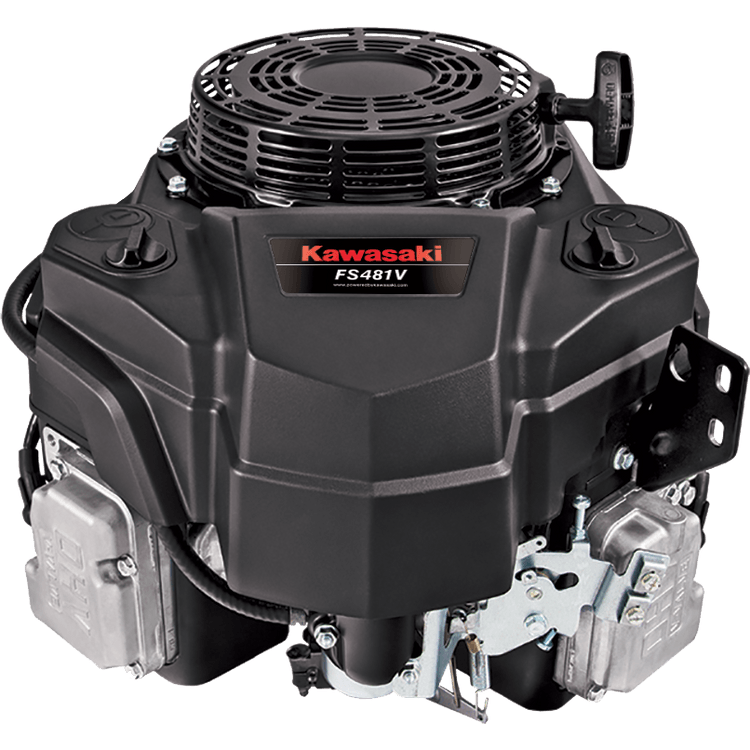

Kawasaki FS481V-(H)S01-S 14.5 HP Vertical Engine 600 series

Kawasaki FS481V-(H)S01-S 14.5 HP Vertical Engine 600 series

Each image of the engine represents the series itself and not the individual engine.

Features:

• V-Twin
• Vertical PTO shaft
• Spherical combustion chamber
• Cast iron cylinder liner
• Overhead V-valve
• Single barrel carburetor with fuel shut-off solenoid
• Full pressure lubrication system
• Spin-on oil filter (optional)
• Dual-element air filter
• Ball bearing crankshaft top support
• 13a or 20a charge coils
• Bendix type starter
• 73 mm cylinder bore
• 72 mm piston stroke
• 8.1:1 compression ratio
• 1,800 rpm of torque
• Low-Tone muffler with guard
• Automatic compression release system
• Mechanical governor
• Pulse type fuel pump
• Electronic spark ignition system
• Dual cable controls
• Heavy-Duty
