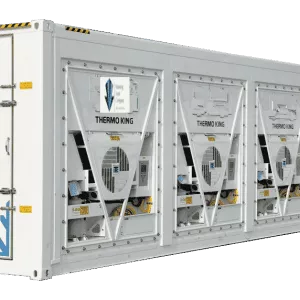

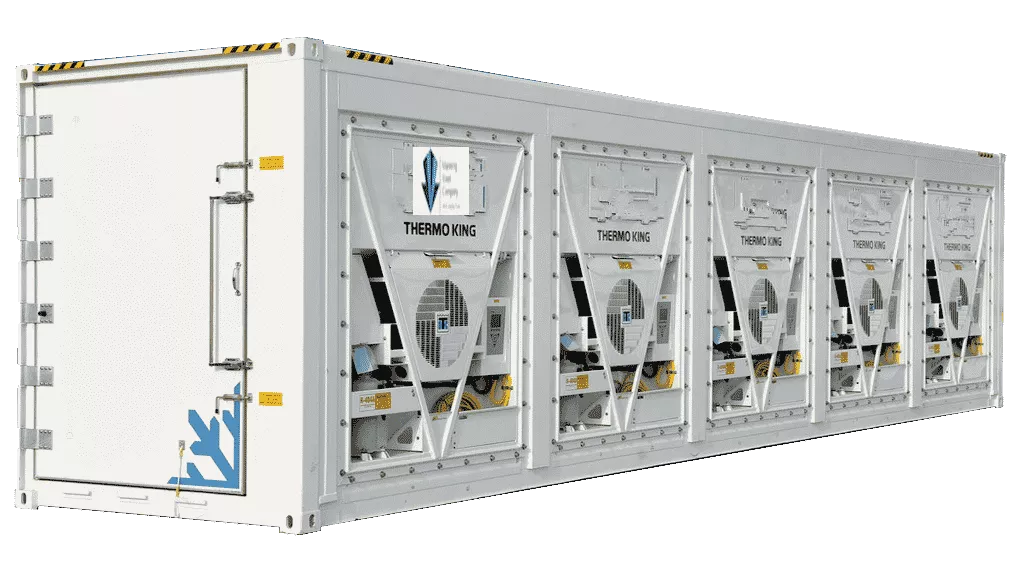

40FT Blast Freezer Containers -40°F TO 70°F (460V/230V 3P)

40ft blast freezer container for sale

Specifications

The 40ft blast freezer container for sale -40°F to 70°F (460V/230V 3P) is one if our refrigerated containers for sale with the following specifications;

Internal capacity
55.6m3 (1,963 Cu.ft)

Door opening dimensions
Width 1,737 0/-5mm (5’-8 25/64” 0/-3/16”)
Height 2,537 0/-5mm (8’-3 7/8” 0/-3/16”)
Cargo access height 2,537 0/-5mm (8’-3 7/8” 0/-3/16”)

Ratings
Max. Gross Weight 30,480kg (67,200LB)
Tare Weight (excl.Unit) 4600kg ( 10140LB)
Tare Weight (incl. TK Magnum Plus Unit 1850 kg) 6450kg (14220LB)
Max. Payload 24030kg (52980LB)

Insulation
Item Thickness Density
Roof 90mm 40-45kg/cu.m
Side walls 65mm 45-50kg/cu.m
Door panels 81mm 45-50kg/cu.m
Floor 51/111mm 50-55kg/cu.m

Heat leakage value
Umax = 60 kcal/deg.c.hr. at the mean wall temperature 293K (20 °C).

Max. air leakage value
Qmax = 16 m3/hr. (incl. reefer unit max. 0.5m3/h) measured at 250+-10Pa.
